Line Magnetic LM-216IA INTEGRATED TUBE AMPLIFIER PUSH PULL KT88 2X38W
A Tube High Fidelity heeft de Line Magnetic LM-216IA voor u demo klaar staan. U zult versteld staan van de capaciteiten van deze krachtpatser
Maakt u gerust een afspraak met ons
Wij, de koffie en de speakers staan voor u klaar, de buizen warmen wij graag voor u op

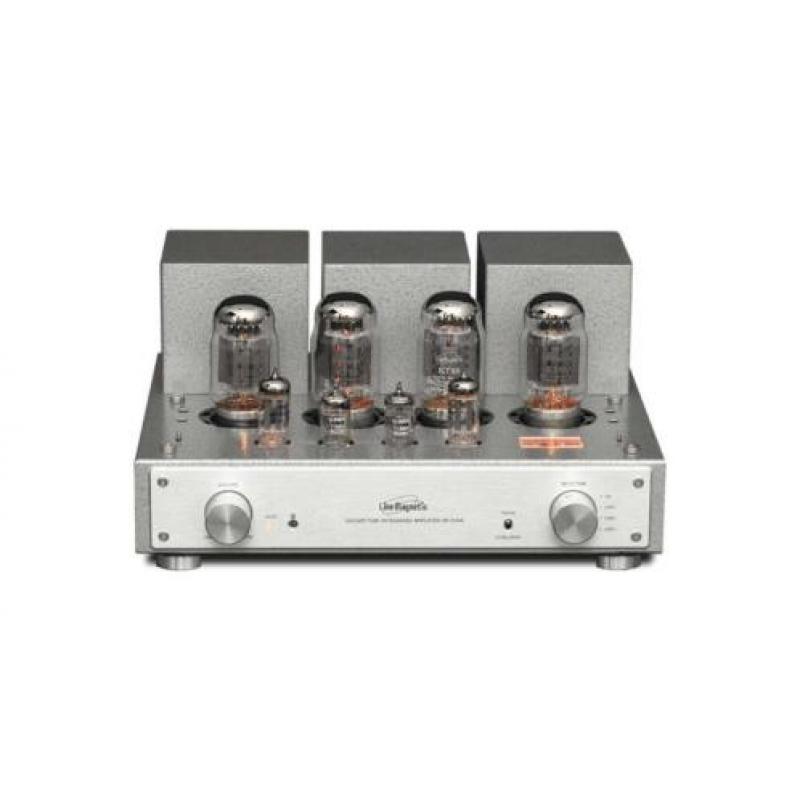

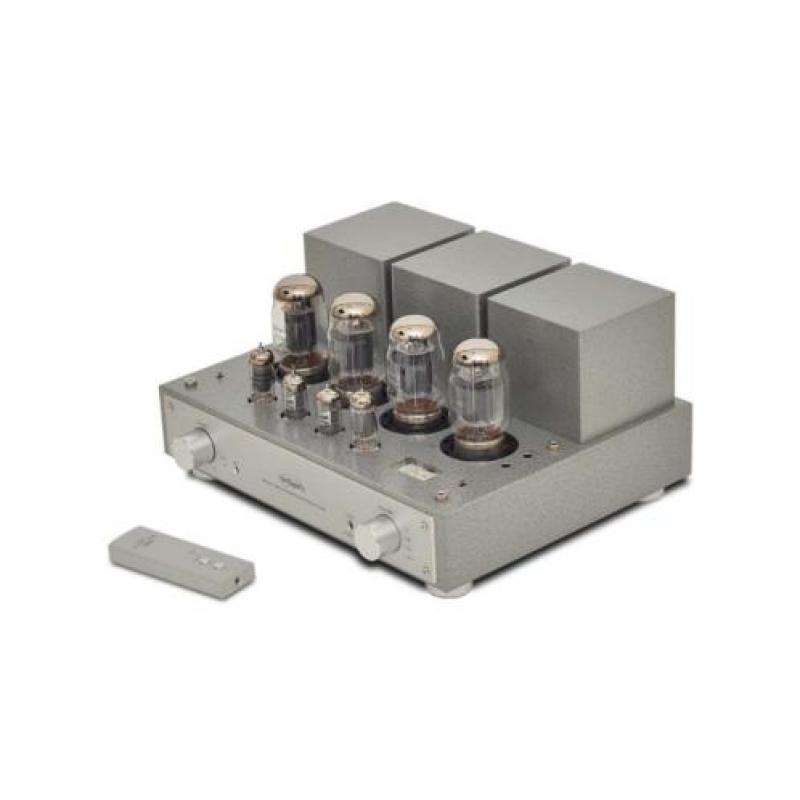

LINE MAGNETIC LM-216IA
is a integrated amplifier. The LM-216IA is a push-pull amplifier with 4x KT88 tubes in Class AB amplification and delivers 2x22W in triode mode and 2x38W in ultra-linear mode. It has 4 balanced line inputs and 4/8 output groups.
The rear-illuminated front panel meter is used to adjust the polarization of the tubes.
The use of high quality components (Realcap capacitors, ALPS potentiometer) wired in the air for the most part is the guarantee of exemplary reliability. Its transformers output are of EI type, specially disigned for power supply. The LM-216iA delivers dynamic, rich and natural sound.
Highlights
Triode/ultra-linear modes
Point-to-point wiring
High quality components
TUBES
Input stage: 2x 12AX7 et 2x 12BH7
Power stage: 4x KT88
SPECIALS
Hand-made construction with the finest point-to-point wiring
Bias control is accessible on top of the amplifier panel with true ampere meter.
Analog Inputs: 4 line inputs Load impedance: 4/8 SoftStart and time-delay circuit. (30 seconds)
Specially designed EI transformer for power supply
Two EI output transformers with wide bandwidth are applied
ALPS volume control and Realcap capacitors are applied
Metal and removable tube guard cage
Infrared Remote control
Specifications
Class AB amplifier
2x22W RMS Triode and 2x38W RMS Ultra-linear
Tubes: 2x 12AX7, 2x 12BH7, 4x KT88
THD: 1% (1kHz)
Signal/Noise ratio: 87dB (Weighted A)
Frequency response: 10 à 50.000 Hz (-1.5 dB)
Sensitivity: 220 mV (Built-in Mode)
Input Impedance: 100k
Load impedance for HP to connect: 4/8

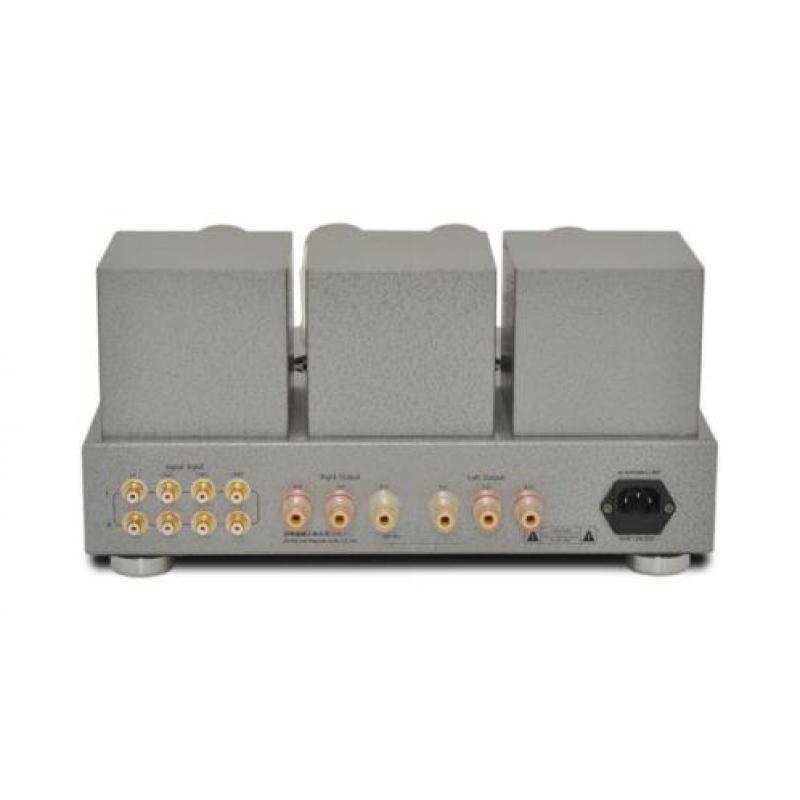

Connectors
4x Line Inputs RCA (pair)
2x Screw terminals compatible with banana plugs
Included Accessories
2x Fuses
1x Remote control
1x Detachable power cord
1x Manual
Tubes Basics Common Replacements
12AX7 12AX7EH, ECC83, E83CC, CV4004, ECC803, 5751
12BH7 12BH7EH
KT88 KT88EH, 6550EH, 6550, 6550A
Afmetingen (L x H x P) : 376 x 192 x 345 mm
Weight: 19.6 Kg
Finish: Silver
A Tube High Fidelity is enig official dealer of Line Magnetic in Nederland. Wij vinden het vervelend voor u dat er verwarring wordt geschept rondom dit prachtige merk.
Namens A Tube High Fidelity en BC Diffusion (Dé enig importeur van LM) onze excuses.
www.atube-highfidelity.nl
Argonweg 23
1362 AA Almere
06-22393789
036-3333041
info@atube-highfidelity.nl
Bc Diffusion:
https:www.line-magnetic.eu/en/home-line-magnetic-en
